3Shul GBX Motors Info and CAD

[El Duderino]

I wanted to start a conversation about the new 3Shul GBX gearbox motors: GBX 80 Gear Motor - 3Shul Motors

I also wanted to let others know I got a link to a Google drive folder with CAD for 3Shul motors. I just emailed support email on website and they sent the link:

Folder link: Motors - Google Drive

Spec: (2) different motors: GBX65 and GBX80

GBX 65 Gear Motor
Rated Power : 16KW
Peak Power : 50KW
Rated Torque : 50Nm
Peak Torque : 208Nm
$699.00

GBX 80 Gear Motor
Rated Power : 30KW
Peak Power : 81KW
Rated Torque : 71Nm
Peak Torque : 288Nm
$849.00

Gearbox ratio: 2.638 to 1, also 520 sprocket fits countershaft

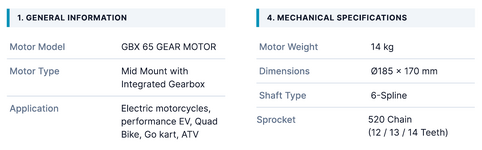

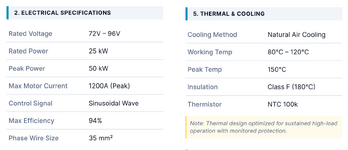

PDF Datasheets attached at the bottom, here is screenshots of the lower rated GBX65:






Pictures:



[El Duderino]

I opened the GBX65 step file in Bambu Handy 3D printer software and it looks like my 256mm x 256mm x 256mm printer will print this out.
